    Custome Design Professional 480v 1500kw AC Load Bank Capacity Tester

    Ask Lasest Price
    Brand Name : Triumph Load
    Model Number : AC480V-1500KW
    Certification : ISO9001
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20 SETS ONE MONTH
    Delivery Time : ONE MONTH AFTER GET DEPOSIT
    • Product Details
    • Company Profile

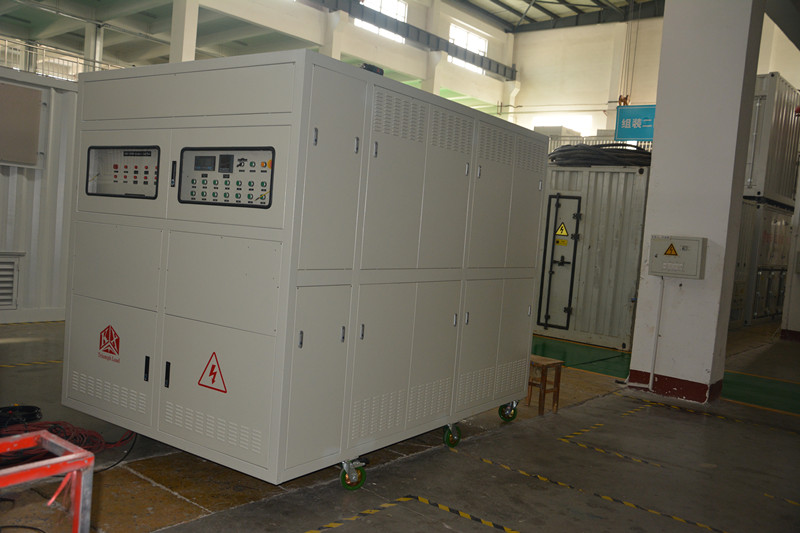

    Custome Design Professional 480v 1500kw AC Load Bank Capacity Tester

    Custome Design Professional 480v 1500kw AC Load Bank Capacity Tester

    Product Description

    Automatic AC load bank main used to test the capability and aging degree for high-power ups on-line, inverter, switch power and diesel generator set for electric power, telecom department and manufacturer. It can ensure the reliability of constant power charge that adopts uniformly stepped power input, energy consumption work model and forced air-cooling model. It is of high power density, no red hot phenomenon and automatic protection function overheated. It can’t be overheated and broken when the fans stop working. The complete machine can be operated simply and maintain convenient that adopts module design. It can test voltage and current according to client’s request, and provide scientific test measures for high-power AC equipment.

    Technical Parameters

    Rating Voltage/Frequency480VAC 50Hz/60Hz,3phase 4 wire
    Max Load PowerResistive Load: 1500kW
    Load Step

    Resistive Load:16 steps
    1,2,2,5,10,10,20,50,100,100,200,200,200,200,200,200kW

    Power Factor1
    Load Tolerance(each step)±5%
    Load Tolerance(overall)±3%
    Display Precision0.5 class
    Control Power SupplyExternal 415VAC, 3phase 4wire 50Hz
    Wire Connection

    Load Power Supply Input——Copper bar (star connection)
    Control power supply input——Connector bar

    Communication InterfaceRS232 and RS485
    Insulation ClassF
    Duty CycleContinuous
    CoolingForced air cooling, horizontal air inlet and air outlet
    TransportationHoisting, there are lifting lug in top of case and wheel castors on the bottom
    Chassis colorGray(RAL7035)
    Size

    Approximately 1900mm*2900mm*2100mm
    (Width *Length *Height)

    WeightApproximately 2000kg
    Ambient Temperature-10℃~+50℃
    Relative Humidity≤95%
    Altitude≤2500meters
    Atmospheric Pressure86~106kPa


    Product Advantage

    1. our company is the largest and earliest load bank manufacturer in China, we have more 20 years experience. factory has 25,000 square meters.
    2. The sole company that draw up the enterprise standard “Dry-type load bank” in China.
    3. As the sole load bank supplier for China nuclear field and the largest load bank supplier for marine, military and aviation industry.
    4. China Power Industry Top Ten Famous Products.
    5. China Power Supply Recommend Products.
    6. Certified by SGS, CE, ISO9001:2008.
    7. Public company, as listed company in 2015.

    Application

    Load Banks are used with Engine Generators, Battery Systems, UPS Systems, Inverters, Ground Power Units, Auxiliary Power Units, Aircraft Power Generators, Wind Generators, and Hydro Generators.
