    Display Accuracy 400V Reactive Load Bank 0.5 Grade For Dynamic Parameters

    Ask Lasest Price
    Brand Name : Kaixiang
    Model Number : AC400V-300KW
    Certification : ISO9001
    Price : negotiable
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 70 Sets / Month
    Delivery Time : Within35 working days
    • Product Details
    • Company Profile

    Display Accuracy 400V Reactive Load Bank 0.5 Grade For Dynamic Parameters

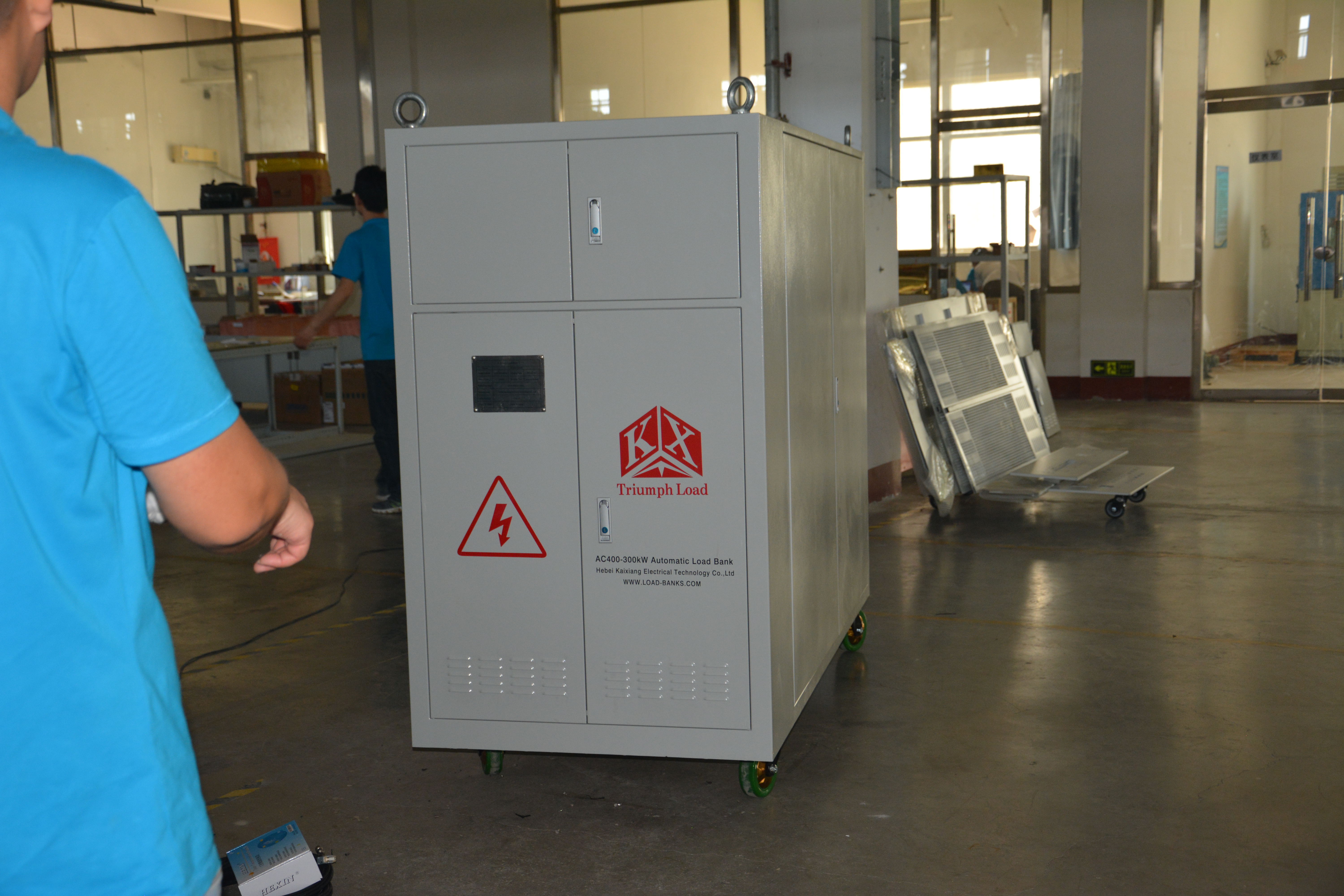

    AC400V-300KW Dummy Load Bank In Grey With Best Sales And Good Performance

    Introduction

    AC400V-300KW Dummy Load Bank can accurately test output power and load capacity with all kinds of generators, generator sets for all main electrical parameters including the dynamic parameters tested.

    Application

    Accurate Data: with high precision data collection module and measuring meter, related equipment has passed the certification by CMA (China Metrology Accreditation) qualification testing institution, and ensures the reliability of data.

    AC400V-300KW Dummy Load Bank can be used with a computer to realize automatically completing the special test and the intelligent control to all electrical parameters of generating set and generating tables, graphs, and supporting the print, release from the cumbersome manual operation to provide scientific and efficient detection means for the large power high voltage generating sets.

    Technical specification

    AC400V-300KW Dummy Load Bank
    Technical Parameters
    Rating Voltage/Frequency400VAC 50Hz,3phase 4 wire,
    Max Load PowerResistive Load: 300kW
    Load StepResistive Load.11steps; 1,2,2,5,10,10,20,50,100,100kW.
    Power Factor1
    Load Tolerance(each step)±5%
    Load Tolerance(overall)±3%
    Display accuracy0.5 grade
    Control Power SupplyExternal 400VAC, 3phase 4wire 50Hz,
    Wire Connection

    Load Power Supply Input——Copper bar (star connection)

    Control power supply input——Connector bar

    Communication InterfaceRS232 and RS485
    Protection GradeControl Part: IP55; Protection of Resistor Cabin:IP 55 when stock state,IP21 when operation state
    Insulation ClassF
    Duty CycleContinuous
    CoolingForced air cooling, horizontal air inlet and air outlet
    Chassis colorGray(RAL7035)
    SizeApproximately; 1980mm*900mm*1500mm(without wheel castors)(Width *Length *Height)
    WeightApproximately 500kg
    Operating Environment Parameter
    Ambient Temperature-10℃~+50℃
    Relative Humidity≤95%
    Altitude≤2500 meters
    Atmospheric Pressure86~106kPa
    Main features
    --Data collection interval: the minimum data storage interval is two seconds.
    --Data save and query: all the test data is saved in the software, easy to query in the history testing data.

    --Load pattern: Manual Load or Automatic Load.

    --Manual Load: Input power, system will load according to preset power.

    --Automatic load: user can preset power and length of working time of several load periods, as per 0%→25%→50%→75%→100% or 110% to make testing.

    --Parallel testing: when several load bank work in parallel, use can make parallel testing via software, can display, record parameters of every load bank and whole system parameter of parallel operation.

    --Real-time parameter: through software to display voltage, current, power, power factor, frequency and time, etc.

    --Security monitoring and control: monitor working state of the load bank by watching software light, when abnormally stop and protect, it can show the reason.
